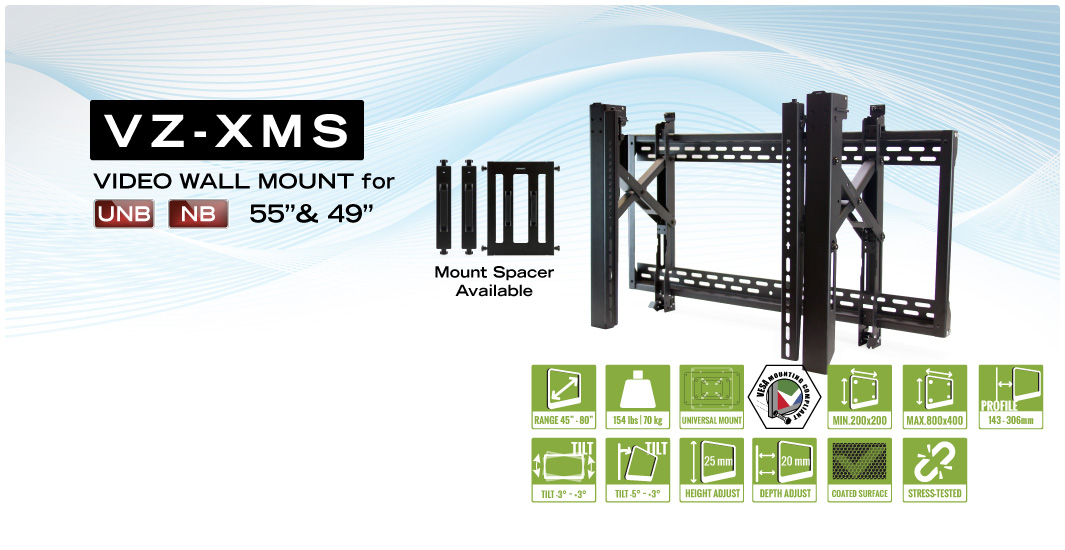

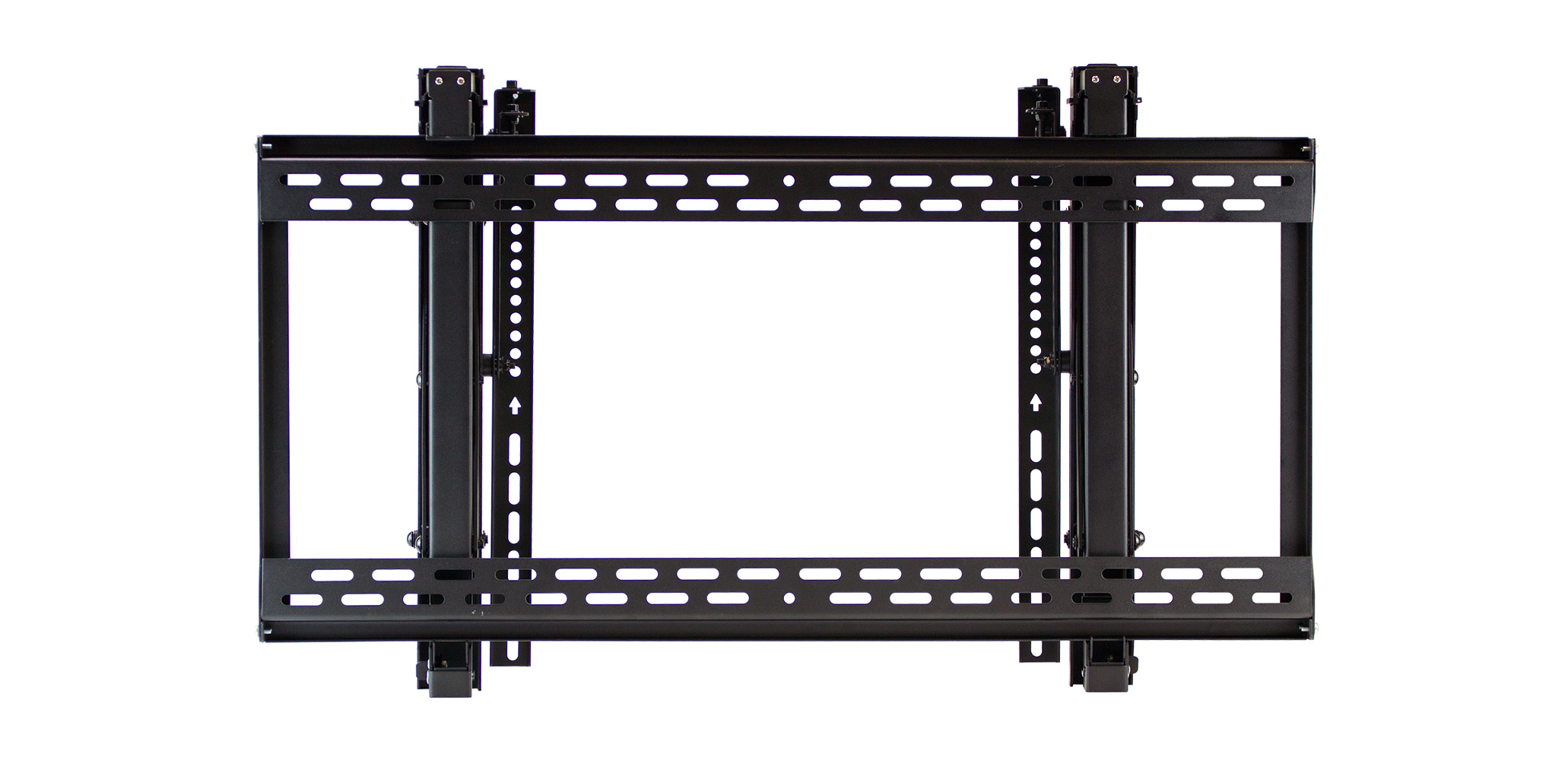

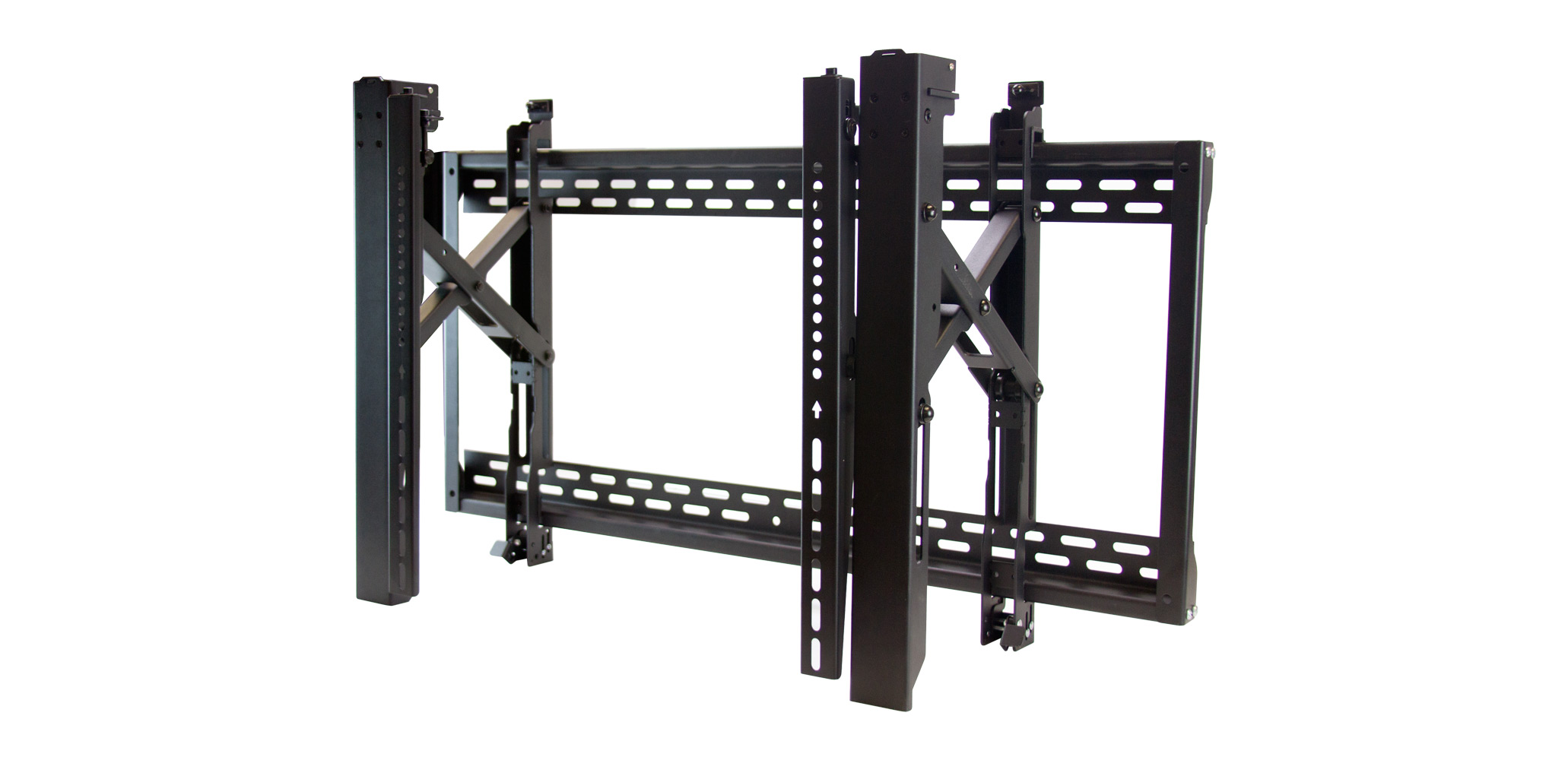

Model Number: VZ-XMS |
|
45" ~ 80" Flat Video Wall Mount |
|
Pop-out Landscape CCTV Video Wall Mount | |

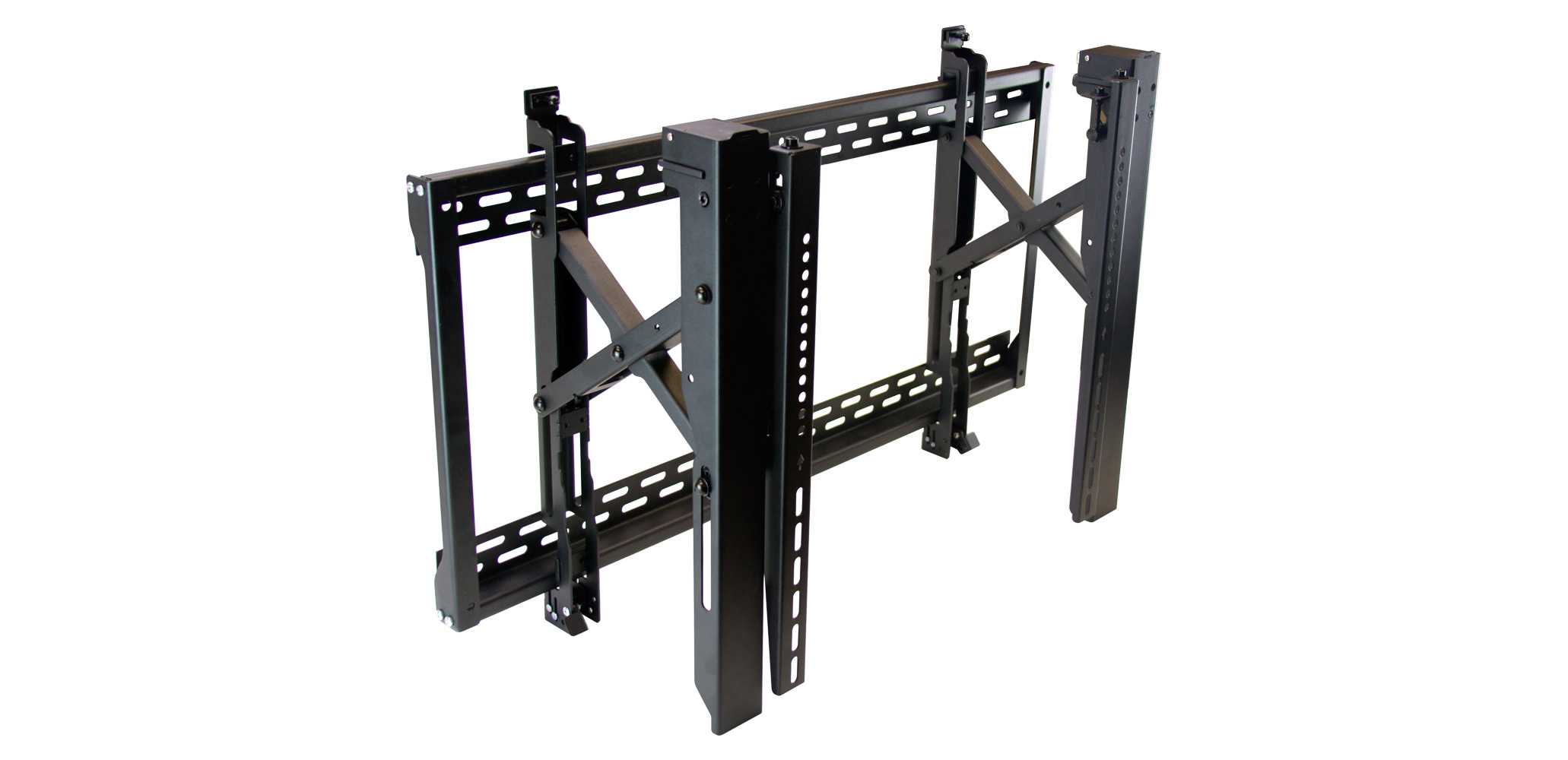

Pop-out extension easily pulls out for installation and maintenance | |
Spring loaded and X, Y and Z axis fine tune adjustment system for easy and accurate installation | |

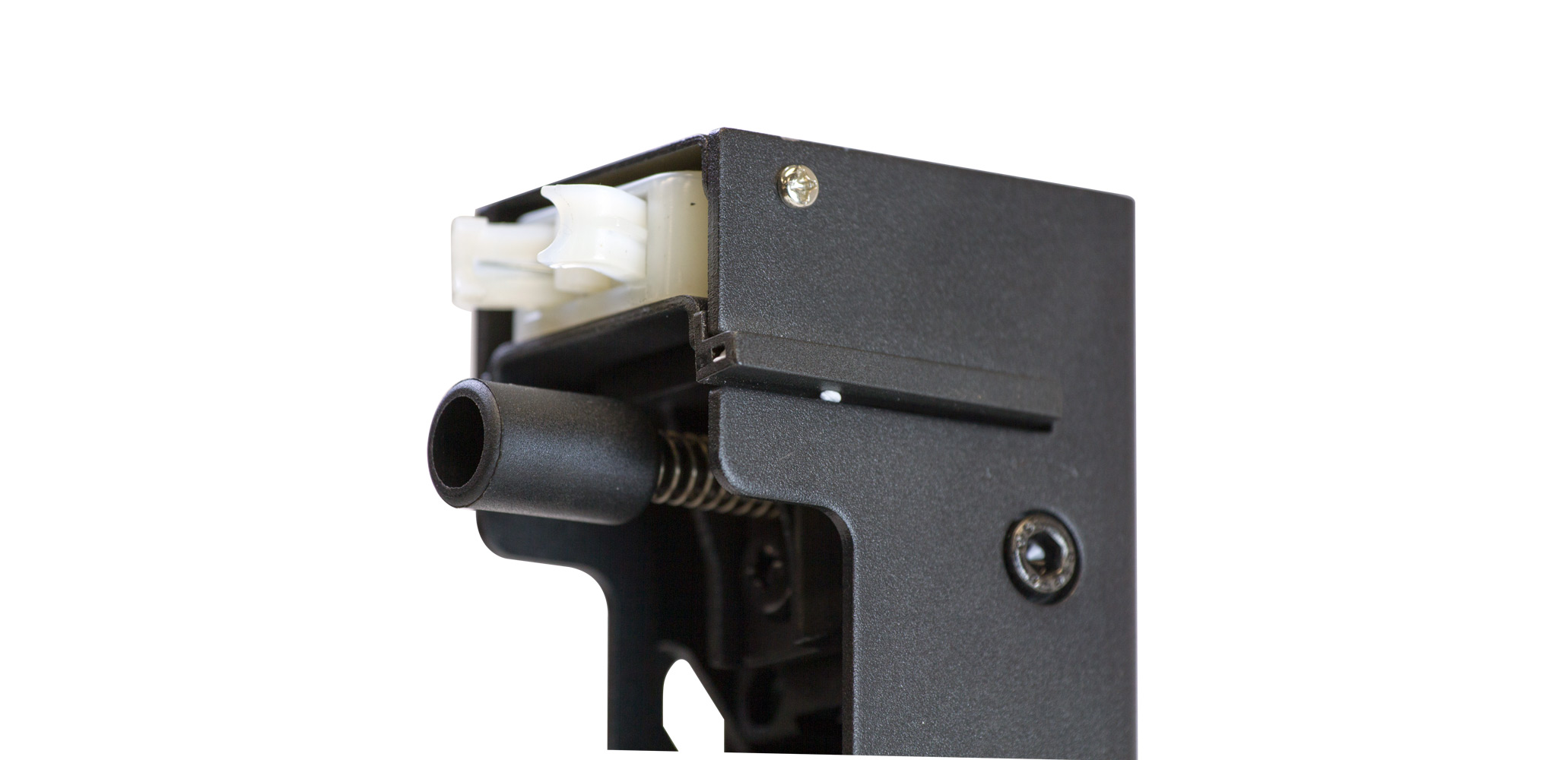

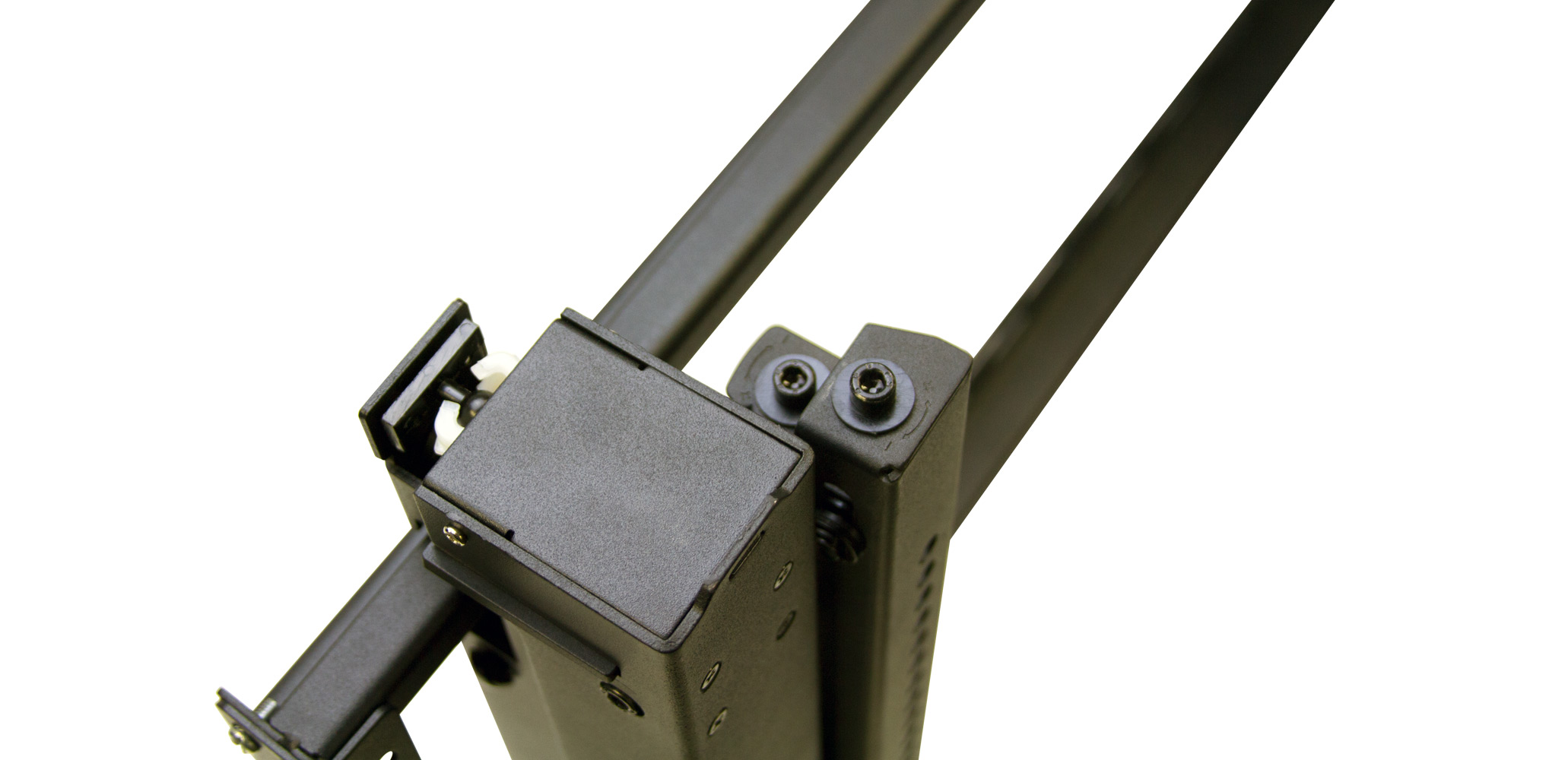

Quick-release latch easily activates lock & unlock mode to secure displays in place firmly | |

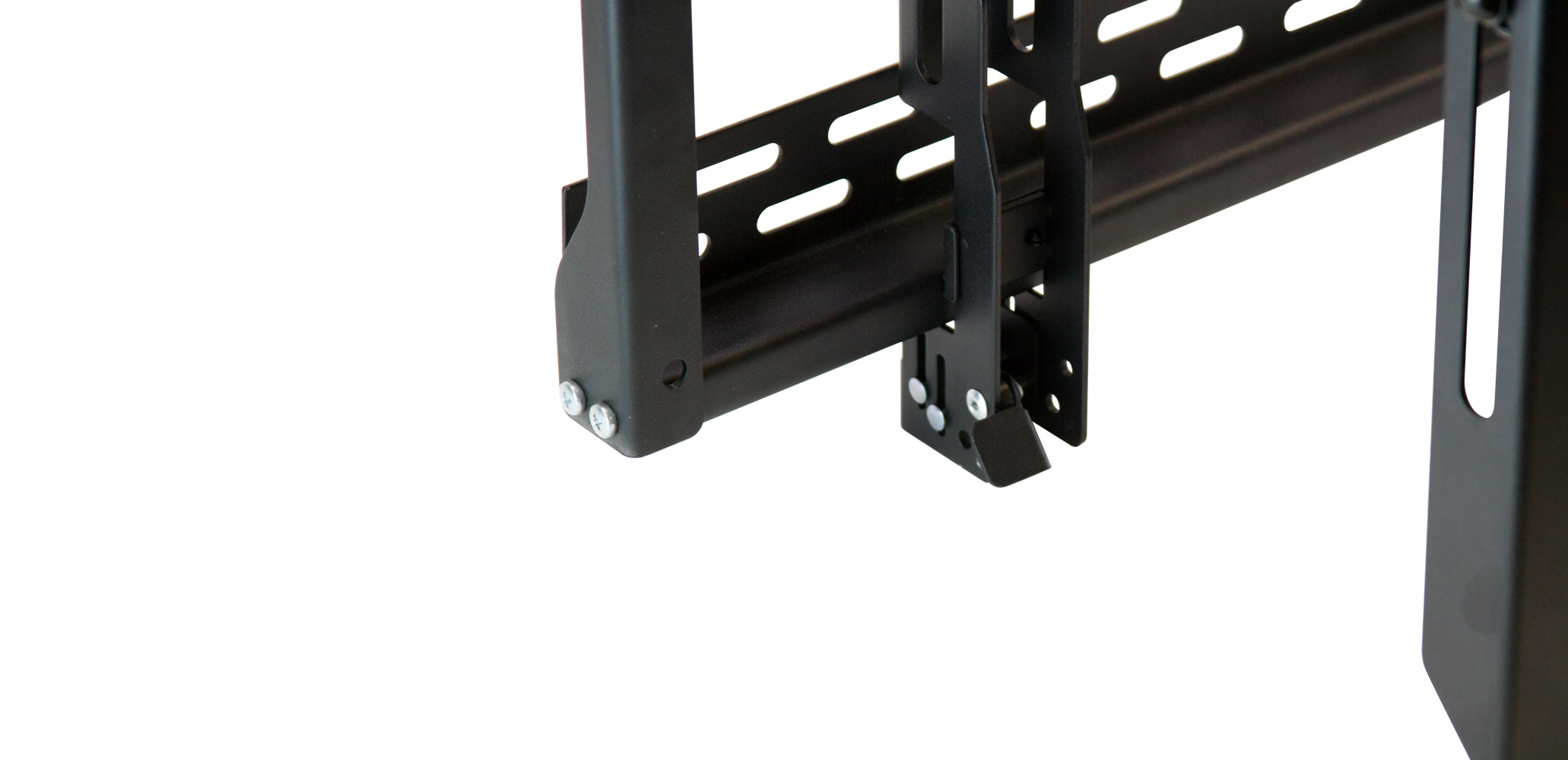

Anti-theft design offers an additional insurance against theft (a padlock required) | |

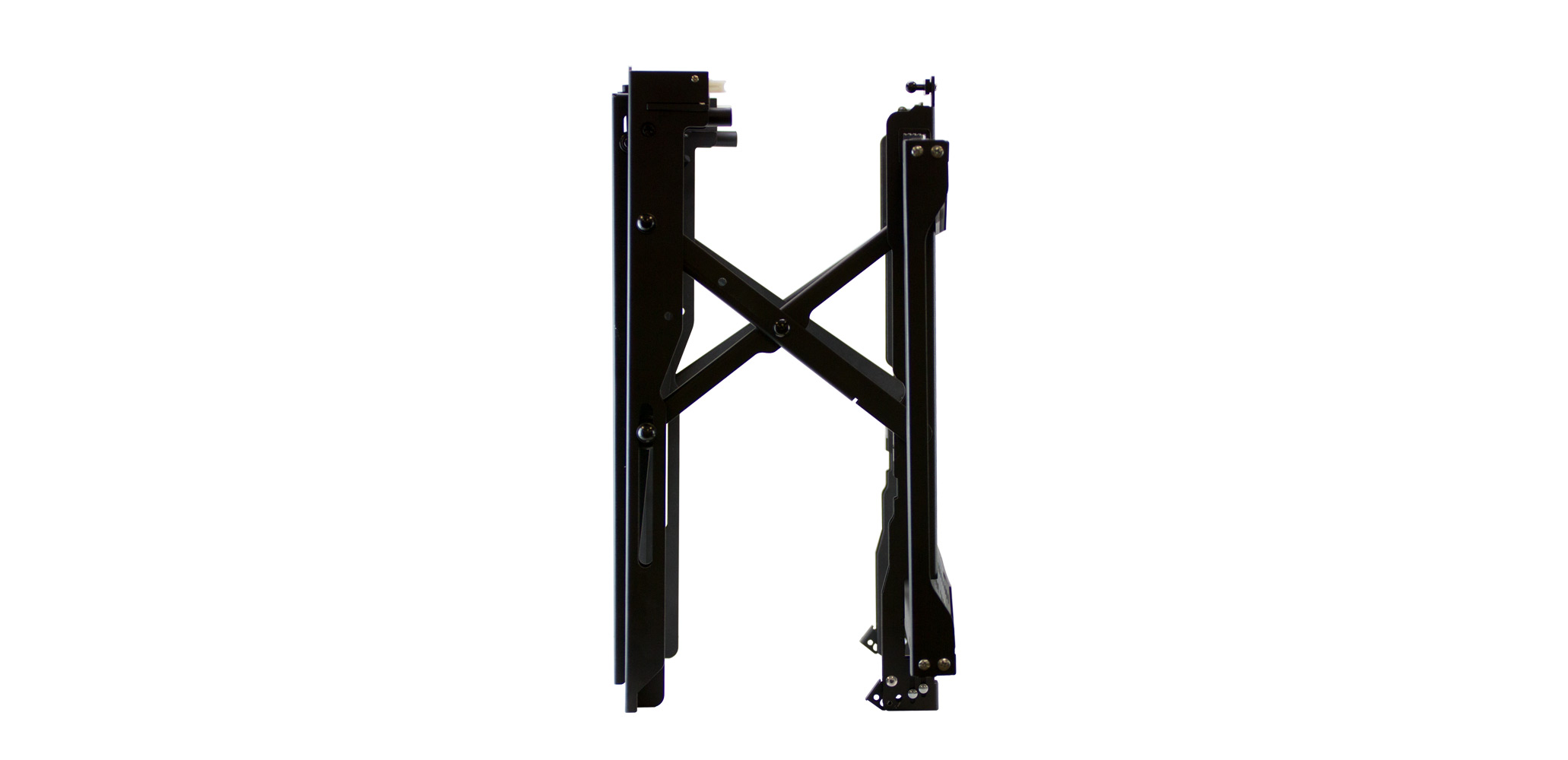

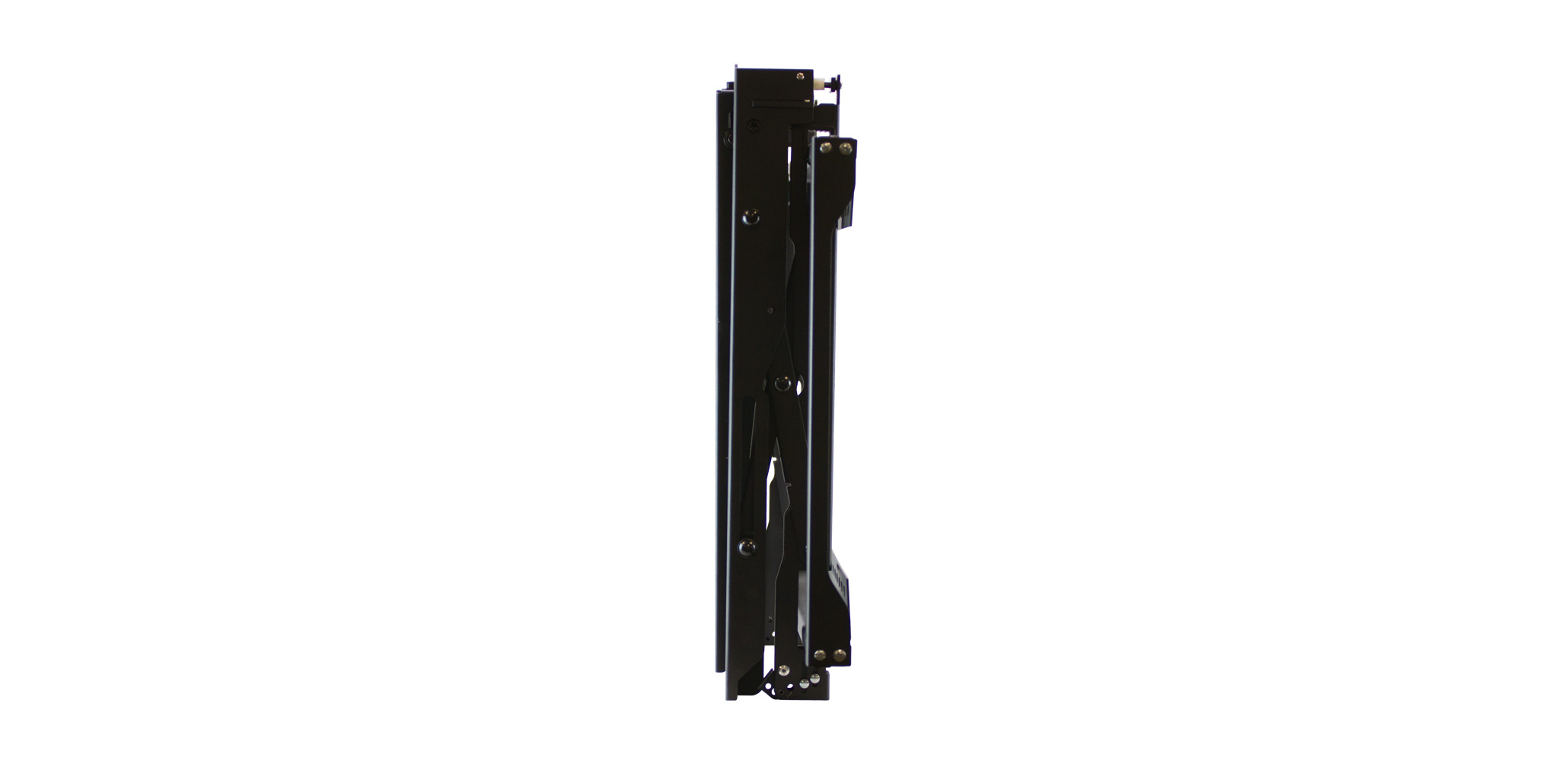

Scissor design and compact mounting arms allow for extension in one smooth motion | |
“Click-it” locking feature confirms display is secure through an audible noise |
Download VZ-XMS PDF Specifications Sheet
Display Range | 49 ~ 65 inch |
Mounting Patterns Type | Range |
Mounting Patterns | 200 x 200 (Min) ~ 800 x 400 (Max) mm |
Extension | 7.99” / 202.9 mm |
Weight Capacity per Head | 154 lbs / 70.0 Kg |
Tilt | - 20° ~ +40° (Ver) / ± 30° (Hor) |
Height / Depth Adjustment | 0.98 / 0.78" (25 / 20 mm) |
Net / Gross Weight | 25 lbs ( 11.3 Kg ) / 27.1 lbs ( 12.29 Kg ) |
Dimensions | Width x Height x Depth - inch |
44.64 x 19.01 x 3.74 ~ 11.22 | |
Width x Height x Depth - mm | |
1134 x 519 x 95 ~ 285 | |
DIM Sizes | Width x Height x Depth - inch |
34.25 x 16.33 x 1.29 | |
Width x Height x Depth - mm | |
870 x 415 x 33 | |
* Specifications subject to change without notice |
