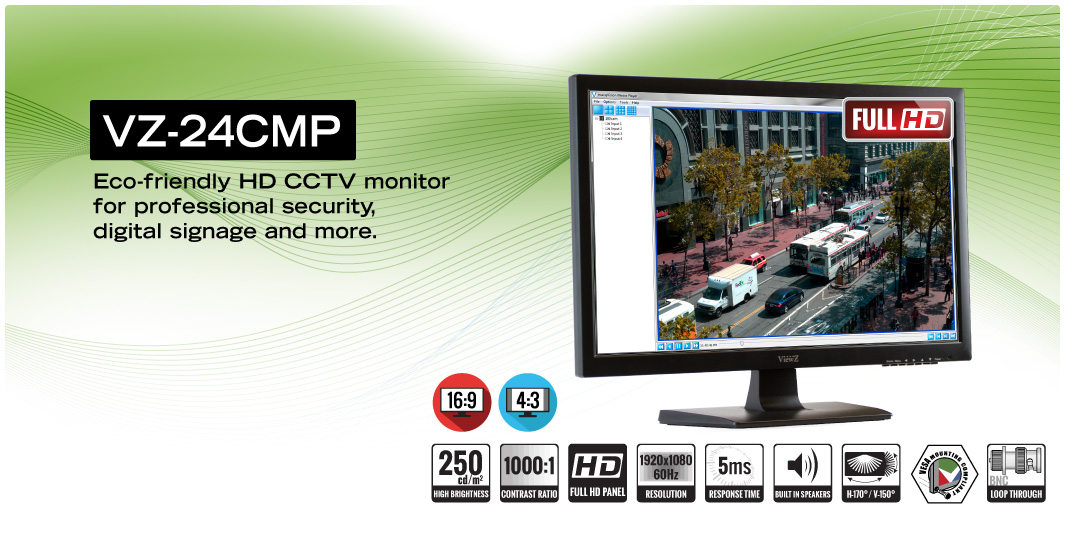

Model Number: VZ-24CMP |
|
23.6" Black Panel Widescreen LED "A" Commercial-Grade Monitor |
|
Full HD (1920x1080) / 16:9 | |
2 AV (CVBS) Inputs / 1 AV (CVBS) Output (Loop-through) | |
Analog Video Resolution (Max) - 600 TV Line | |
3D Comb-Filter / De-Interlace | |
HDMI / VGA / Audio In/Out | |
Auto Source & Power Recovery | |
3W Speaker x 2 | |
DC 12V / Power Consumption ≤ 28 W | |
3-Year Warranty |
Download VZ-24 CMP PDF Specifications Sheet
Screen Size | 23.6" |
Max Resolution | 1920 x 1080 @ 60Hz |
Pixel Pitch | 0.2715 mm x 0.2715 mm |
Brightness | 250cd/m²(Typical) |
Contrast Ratio | 1000:1 |
Aspect Ratio | 16 : 9 |
Viewing Angle (H/V) | 178°/178° |
Display Color | 16.7 Million |
Response Time | < 14ms |
AV (CVBS) In / Out | 2 / 1 |
RGB In (15pin D-Sub) | 1 |
HDMI In | 1 |
Audio In/Out | 1 / 1 |
Built-in Speaker | 3 W x 2 |
Filter Type | 3D Comb-filter / De-Interlace |
Auto Power / Source Recovery | Support |
Multi-Lingual Language | English, Spanish, French, Korean |
German, Italian |
Outline Dimension | 21.9" x 15.68" x 1.94" |
(W x H x D) | 555.9 mm x 398.47 mm x 49.5 mm |
Net Weight | 10.14 lb / 4.6 kg |
Gross Weight | 12.56 lb / 5.7 kg |
Vesa | 100mm x 100mm / M4 x L8 Screws |
Transmitter - IR Remote Control | Yes |
Power - Electrical Ratings | DC12V, 3.0A (AC100 ~ 240V[50/60Hz]) |
Power - Consumption | 28W |
Warranty - Parts / Labor | 3 Year / 3 Year |
Operating Temperature | 14 ~ 122°F / -10 ~ 50°C |
Compatible Mounts - Wall | VZ-WM05, VZ-WM11, VZ-AM01 |
Compatible Mounts - Ceiling | VZ-CMKiT-01, VZ-CMKiT-02 |
* Specifications subject to change without notice |
