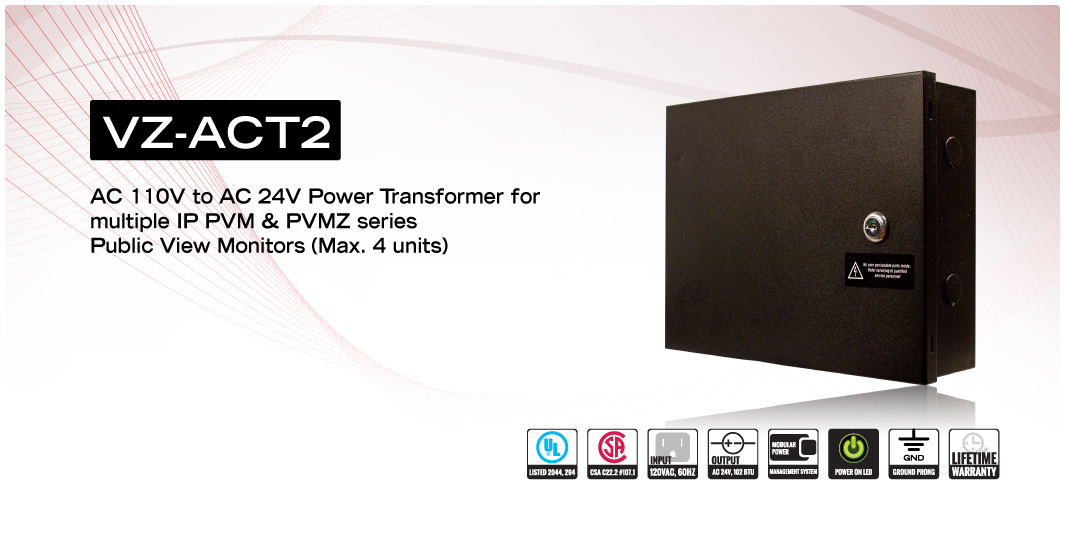

Model Number: VZ-ACT2 |
|
Specifically designed for 10", 23", 27", 32" HD Public View Monitor and 23", 27" and 32" iP Public View Monitor |
|
AC 24V output | |
AC 120V / 60Hz | |
Multiple Outputs for Cameras (4 Outputs) and Additional Accessory Power Distribution Modules |
|
Fully Modular Power Management System | |
Quality-Controlled Manufacturing Process | |
RoHS Compliant, Lead-Free Manufacturing | |
Fiberglass PCBs, Green LED per Output | |
3A Fuse per Output(FPA100A-A8E5), Removable Terminals | |
2.5A Class 2, Power Limited (FPA100A-A8PE5) |
Download VZ-ACT2 PDF Specifications Sheet
Input Voltage | 120VAC, 60Hz |
Output Voltage | 24V AC |
Output Current | 12.5 A |
Output Power | 300W |
BTU Rating | 102 BTU |
Power Output | 4 units |
Regulation | Safety Standards | UL 2044, UL 294 |
CSA C22.2 #107.1, Ontario Province Registered | ||
Outline Dimension (W x H x D) | 11" x 8.5" x 3" |
279.4mm x 215.9mm x 76.2mm | |
Net Weight | 6 lbs / 2.72 kg |
Monitor Model | VZ-PVM-Z4B2, Z4W2, I4B2 & I4W2 | |
Cable Type | 14AWG | |
Ft / Meter | Volt. (V) | Curr. (A) |
50 ft / 15.24 m | Tested | Tested |
100 ft / 30.48 m | Tested | Tested |
150 ft / 45.72 m | Tested | Tested |
200 ft / 60.96 m | Tested | Tested |
300 ft / 91.44 m | Not Recommended | |
Monitor Model | VZ-PVM-Z3B2, Z3W2, I3B2 & I3W2 | |||
Cable Type | 14AWG | |||
Monitor 1 | Monitor 2 | |||
Ft / Meter | Volt. (V) | Curr. (A) | Volt. (V) | Curr. (A) |
50 ft / 15.24 m | Tested | Tested | Tested | Tested |
100 ft / 30.48 m | Tested | Tested | Tested | Tested |
150 ft / 45.72 m | Tested | Tested | Tested | Tested |
200 ft / 60.96 m | Tested | Tested | Tested | Tested |
300 ft / 91.44 m | Tested | Tested | ||
400 ft / 121.92 m | Not Recommended | |||
Monitor Model | VZ-PVM-Z2B2, Z2W2, I2B2 & I2W2 | |||
Cable Type | 14AWG | |||
Monitor 1 | Monitor 2 | |||
Ft / Meter | Volt. (V) | Curr. (A) | Volt. (V) | Curr. (A) |
50 ft / 15.24 m | Tested | Tested | Tested | Tested |
100 ft / 30.48 m | Tested | Tested | Tested | Tested |
150 ft / 45.72 m | Tested | Tested | Tested | Tested |
200 ft / 60.96 m | Tested | Tested | Tested | Tested |
300 ft / 91.44 m | Tested | Tested | Tested | Tested |
400 ft / 121.92 m | Tested | Tested | Tested | Tested |
500 ft / 152.4 m | Not Recommended | |||
Monitor 3 | Monitor 4 | |||
Ft / Meter | Volt. (V) | Curr. (A) | Volt. (V) | Curr. (A) |
50 ft / 15.24 m | Tested | Tested | Tested | Tested |
100 ft / 30.48 m | Tested | Tested | Tested | Tested |
150 ft / 45.72 m | Tested | Tested | Tested | Tested |
200 ft / 60.96 m | Tested | Tested | Tested | Tested |
300 ft / 91.44 m | Tested | Tested | ||
400 ft / 121.92 m | Not Recommended | |||
500 ft / 152.4 m |
Operating Humidity | 93% at 32°C (90°F) maximum |
Operating Temperature | 32°F ~ 120°F / 0°C ~ +49°C |
Storage Temperature | -22°F ~ 158°F / -30°C ~ +70°C |
* Specifications subject to change without notice |
