Model Number: VZ-FBC-1 |
|
Full HD 1080p over coaxial cable, BNC connection |
|
1/2.9” SONY Progressive Scan CMOS Sensor |
|
2.1 MP Fixed 3.6 mm HD Lens |
|
Up to 1920 x 1080 / NTSC : 30fps & PAL : 25fps |
|
0.01 Lux ( Color-AGC On ), 0 Lux ( B/W - IR On ) |
|
18 IR LEDs, ATW/MWB , 3D DNR, WDR |
|
No additional installation cost. (Compatible with existing coaxial cables) |
|
Video outputs for diverse applications. ( AHD / TVI / CVI / CVBS ) |
|
3D - NR (Noise Reduction) |
|
Built in OSD Control Switch | |
DC 12V ± 10% ( IR-LED On ) |
Download VZ-FBC-1 PDF Specifications Sheet
Image Sensor | SONY 2.1 Megapixel 1/2.8” CMOS Sensor |
HD Scanning System | Progressive Scan |
Lens | 2.1 MP Fixed 3.6 mm |
Min. Illumination | Color: 0.01 Lux, B/W: 0 Lux |
Signal System | NTSC / PAL |
S/N Ratio | More than 50dB (AGC OFF) |
Electronic Shutter Speed | NTSC : 1/30sec ~ 1/10,000sec PAL : 1/25sec ~ 1/10,000sec |
AGC | Adjustable 1 ~ 15 |
Light Compensation | Auto |
WDR | On, Off (More than 120dB) |
FOV (Field Of View) | 85° |
IR LED | 18pcs IR LED |
IR Wavelength / Range | 850 nm / 49 ft ( 15m ) |
White Balance | ATW / MWB |
Day & Night | ICR ( Auto, B.W, Color, EXT ) |
3D-NR | On, Off |
BLC | Support |
Digital Output | HD Output: 1920x1080p 30fps (NTSC/PAL Mode Select) |
Video Output Level | 1.0 Vp-p (75Ω, Composite) Standard |
Video Transmission | 984 ft / 300 m |
Dimensions | Ø 7.85” x 2.63” inch (Ø 199.4mm x 67mm) |
Net Weight | 0.66 lbs / 300g |
Default Language | English (selectable) |
Construction | Aluminium Alloy |
Power Supply | DC 12V ± 10% |
Power Consumption | Max. 3.5W |
Regulation | CE, FCC |
Operating Temperature | 14 ~ 131°F / -10°C ~ 55°C |
Humidity | 0% to 85% |
Housing Color | White |
Protection Rating | IP 66 |
* Specifications subject to change without notice |
2.1 Megapixel SONY CMOS Sensor
ViewZ HD cameras use a SONY CMOS Sensor. ViewZ HD cameras boast 3 Full HD CMOS image sensors for RGB. These image sensors are 1/2.8”, 2.1-megapixel (1920 x 1080) and are capable of acquiring full-HD images.
DAY & NIGHT FILTER
Equipped with a built-in ICR (IR-cut filter removable) and an IR illuminator, ViewZ HD cameras can deliver colorful videos during the day and black & white video when the illumination drops below a certain lux level.
WIDE DYNAMIC RANGE (WDR)
ViewZ HD cameras’ WDR technology provides clearer images and even lighting in applications that are simultaneously both bright and dark. This is particularly useful in areas with windows and lots of natural light.
FULL HD RESOLUTION
ViewZ HD cameras feature 1920x1080 (2.1MP) HD output resolution with active 1920 (H) x 1080 (V) pixel resolution
SMALL BUT STRONG

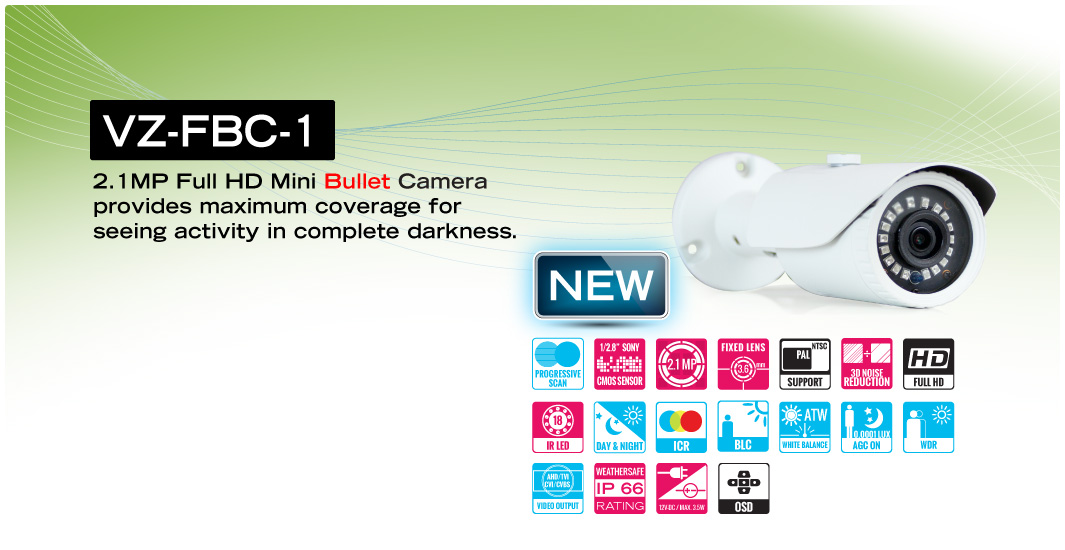

VZ-FBC-1 (HD Bullet Fixed Lens camera) are small yet feature- rich. Combination of HD resolution and features like day/night and true WDR results in great performance at a great price.
18 IR LED
VZ-FBC-1 camera use 18 IR LEDs. They assist with low light situations while using a small product foot print. The entire camera line has a long-life expectancy with high efficiency.
PROGRESSIVE SCANNING SYSTEM
ViewZ HD cameras utilize progressive scanning technology which eliminates the jagged edged artifact seen commonly in interlaced scanning.
MEGAPIXEL LENS
To achieve the full resolution of a megapixel camera, it is essential to use a high-quality megapixel lens. Overall image quality is greatly affected by the quality of the optical image directed onto the image sensor.
ViewZ Megapixel cameras provide high contrast, brightness and sharpness across the entire image plane. Non-megapixel lenses will not fully display the resolution of megapixel sensor, especially in the corner areas of the image.
WEATHER PROOF - IP66
ViewZ HD cameras’ IP66 rated weather-proof housing provides protection against rain and dust. This allows them to be used outdoors and in extreme weather conditions.
BACKLIGHT COMPENSATION
Backlight Compensation controls the brightness level of the screen in order to distinguish objects against backlight.
3D NOISE REDUCTION
(NR) Noise Reduction is used in order to obtain a high quality output image and enhance compression efficiency. We offer Edge Preserving and Motion Adaptive 3D NR.
