Model Number: VZ-FE-1 |
|
Full HD 1080p over TCP / IP ( Onvif Profile S) |
|
1/1.8” SONY Progressive Scan CMOS Sensor |
|
6 MP Fixed 1.6 mm HD Lens / De-warping Image (3600) | |
H.264 High/Main/Baseline Profile | |
0.01 Lux ( Color-AGC On ), 0 Lux ( B/W - IR On ) |
|
SMART IR, AGC, ATW, DNR (2D / 3D), D-WDR, ICR, HLC, D/N | |
No additional installation cost. (Compatible with existing RJ-45 cables) |
|
Video Streaming #1 - 3072 x 2048 @15fps, 1920x1920, 1440x1440, 1920x1080 @25/30fps |
|
Video Streaming #2 - 1280x1280 / 720x720 / 740x576 @15/25/30fps |
|
2D/3D - NR (Digital Noise Reduction) |
|
Built in OSD | |
AC24V / DC12V / PoE |
Download VZ-FE-1 PDF Specifications Sheet
Image Sensor | SONY 6 MP 1/1.8”CMOS Sensor |
HD Scanning System | Progressive Scan |
Lens | MP Fixed 1.6 mm |
Min. Illumination | Color: 0.01 Lux, B/W: 0 Lux |
S/N Ratio | More than 50dB (AGC OFF) |
Electronic Shutter Speed | 1/5sec ~ 1/20,000sec |
AGC | Adjustable 1 ~ 15 |
Light Compensation | Auto |
Digital-WDR | On, Off |
FOV (Field Of View) | 360° |
IR LED / Range | 6pcs IR LED / 49 ft ( 10m ) |
White Balance | Auto |
Day & Night | ICR |
2D/3D-NR | On, Off |
Adjust | SHARPNESS, MONITOR, LSC, NTSC/PAL |
Digital Zoom | On (x2 ~ x64) / Off |
Privacy Masking | On (8 Zone Selectable) / Off |
Motion Detection | On (4 Zone Selectable) / Off |
Defect | LIVE DPC / STATIC DPC |
Sens - up | On (X2 ~ X30) / Off |
D - EFFECT | Freeze / Mirror / D-Zoom / NEG.IMAGE |
Network Protocols | HTTP,HTTPS, TCP/IP, UDP/IP, RTSP, DHCP NTP, PPPoE, Unicast and Multicast |
Alarm Trigger | Network disconnect, Disk alarm, I/O alarm |
RTSP Video | Standard RFC2326, Support QuickTime / VLC |
Security | User Sec. Authentication, Reset, H/W WatchDog |
System Compatibility | Onvif Profile-S |
Video Compression | H.264 High/Main/Baseline Profile, M-JPEG |
Bit Rate (CBR/VBR) | 500kb - 12000kb |
Audio Compression | G.711 ,RAW PCM |
Stream #1 | 3072 x 2048 @15fps 1920x1920/1440x1440/1920x1080@25/30fps |
Stream #2 | 1280x1280/720x720/740x576@15/25/30fps |
Image Setting | Rotate Mode, Saturation, Brightness Contrast, Sharpness |
De-warping | 1F + 3 / 5 / 7, 180° panorama |
HLC | On, Off |
Ethernet | 1ea - Ethernet (10/100 Base-T) RJ-45 Connector |
Audio I/O | 1ch Audio In, 1ch Audio Out |
Alarm I/O | 1ch Alarm In, 1ch Alarm Out |
Additional Storage | 1ea - Micro SD/SDHC/SDXC slot, Max 64GB |
Dimensions | Ø 6.37 x 2.05 inch (Ø 161.99 mm x 52.2 mm) |
Net Weight | 1.54 lbs / 700g |
Default Language | English (selectable) |
Construction | Aluminium Alloy |
Power Supply | AC24V / DC12V / PoE |
Power Consumption | 8W - IR LED ON | 5W - IR LED OFF |
Regulation | CE, FCC |
Operating Temperature | -22 ~ 140°F / -30°C ~ 60°C |
Humidity | 0% to 90% |
Housing Color | White |
Protection Rating | IP 66 |
* Specifications subject to change without notice |
2.1 Megapixel SONY CMOS Sensor
ViewZ HD cameras use a SONY CMOS Sensor. ViewZ HD cameras boast 3 Full HD CMOS image sensors for RGB. These image sensors are 1/2.9”, 2.1-megapixel (1920 x 1080) and are capable of acquiring full-HD images.
ONVIF COMPLIANT = PLUG & PLAY
VZ-FE-1 is ONVIF compliant for use with other existing ONVIF compliant products. VZ-FE-1 is compatible with many of the Industry's leading VMS’s and NVR’s.

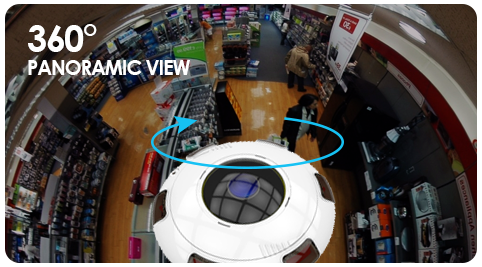

360° PANORAMIC VIEW OF SCEEN WITH NO BLIND SPOT
The new VZ-FE-1 Fisheye camera model offers a complete, high-resolution, 360-degree panoramic view with no blind spots. Cost effective and easy to install, VZ-FE-1 is a 6-megapixel camera that’s designed to provide broad coverage with fewer cameras.
DAY & NIGHT FILTER
Equipped with a built-in ICR (IR-cut filter removable) and an IR illuminator, ViewZ HD cameras can deliver colorful videos during the day and black & white video when the illumination drops below a certain lux level.
DIGITAL WIDE DYNAMIC RANGE (D-WDR)
ViewZ HD cameras’ WDR technology provides clearer images and even lighting in applications that are simultaneously both bright and dark. This is particularly useful in areas with windows and lots of natural light.
FULL HD RESOLUTION
ViewZ HD cameras feature 1920x1080 (6 MP) HD output resolution with active 1920 (H) x 1080 (V) pixel resolution
SENS-UP (SLOW SHUTTER)
See color images in the dark! By automatically slowing the shutter speed, all ViewZ HD cameras are able to pick up the slightest traces of light to display a bright image.

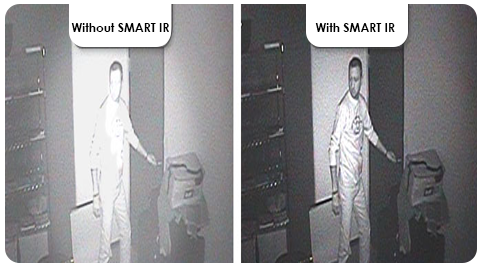

SMART IR TECHNOLOGY
SMART IR technology produces sharp video images in dark environments. This technology eliminates saturation of closer objects by controlling IR sensitivity.
PROGRESSIVE SCANNING SYSTEM
ViewZ HD cameras utilize progressive scanning technology which eliminates the jagged edged artifact seen commonly in interlaced scanning.
MEGAPIXEL LENS
To achieve the full resolution of a megapixel camera, it is essential to use a high-quality megapixel lens. Overall image quality is greatly affected by the quality of the optical image directed onto the image sensor.
ViewZ Megapixel cameras provide high contrast, brightness and sharpness across the entire image plane. Non-megapixel lenses will not fully display the resolution of megapixel sensor, especially in the corner areas of the image.
WEATHER PROOF - IP66
ViewZ HD cameras’ IP66 rated weather-proof housing provides protection against rain and dust. This allows them to be used outdoors and in extreme weather conditions.
MOTION DETECTION
ViewZ FE-1 dome camera has the ability to record to SD storage upon motion detection.
AUTOMATIC GAIN CONTROL
AGC (Automatic Gain Control) increases the amount of amplification in certain conditions to bring the video signal up to the minimum required level. AGC also reduces noise and picture attenuation as well as the signal to noise ratio to provide a quality picture.
BACKLIGHT COMPENSATION
Backlight Compensation controls the brightness level of the screen in order to distinguish objects against backlight.
HIGHLIGHT SUPPRESSION BLC
Highlight Suppression cuts off strong lighting such as car’s headlights. According to user’s preference, zones and sensitivity can be adjusted. For example, when viewing a vehicle on screen, Highlight Suppression allows for clear recognition of license plates and/or person(s) inside the car. HDC series cameras function to mask bright areas in order to prevent the target object from looking dark due to the backlighting.
2D/3D NOISE REDUCTION
(NR) Noise Reduction is used in order to obtain a high quality output image and enhance compression efficiency. We offer Edge Preserving and Motion Adaptive 3D NR.
